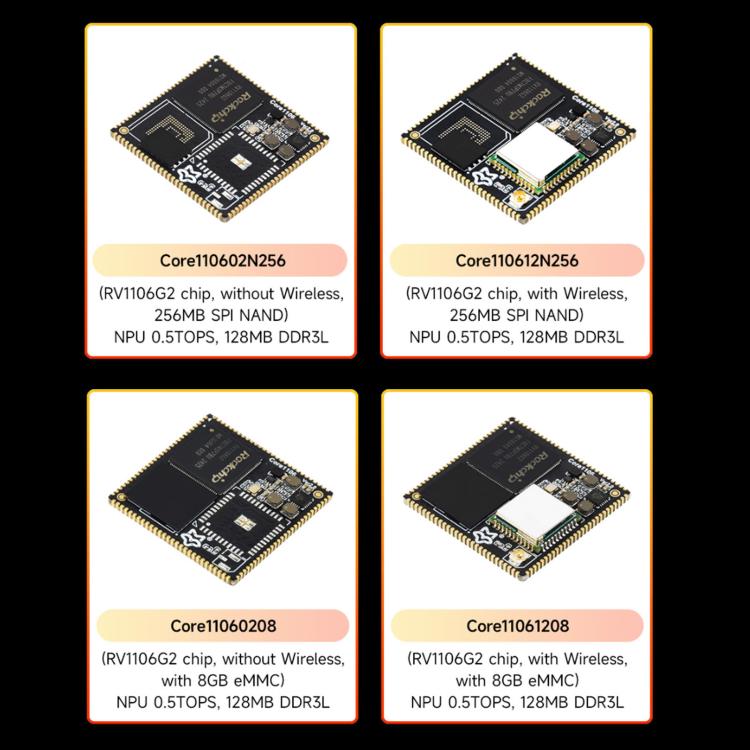

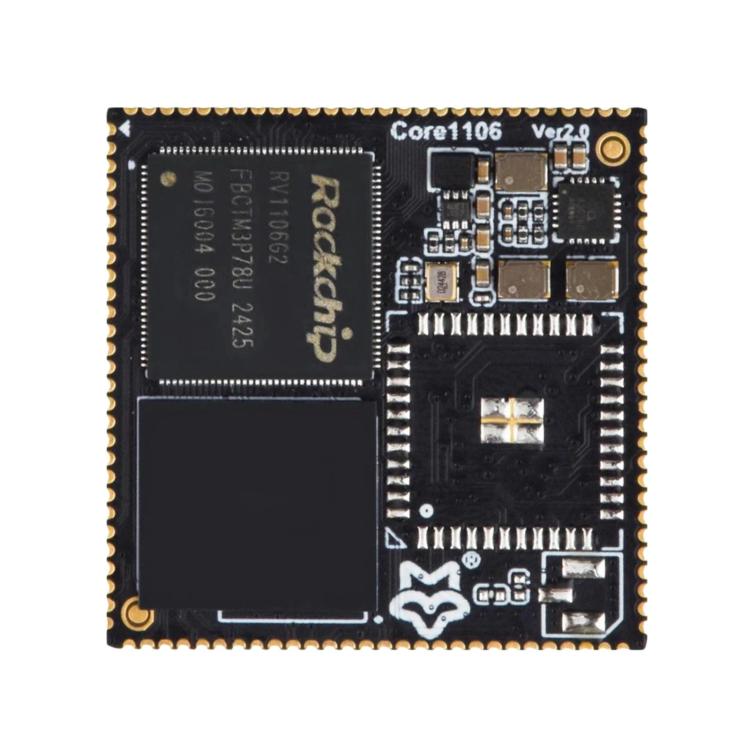

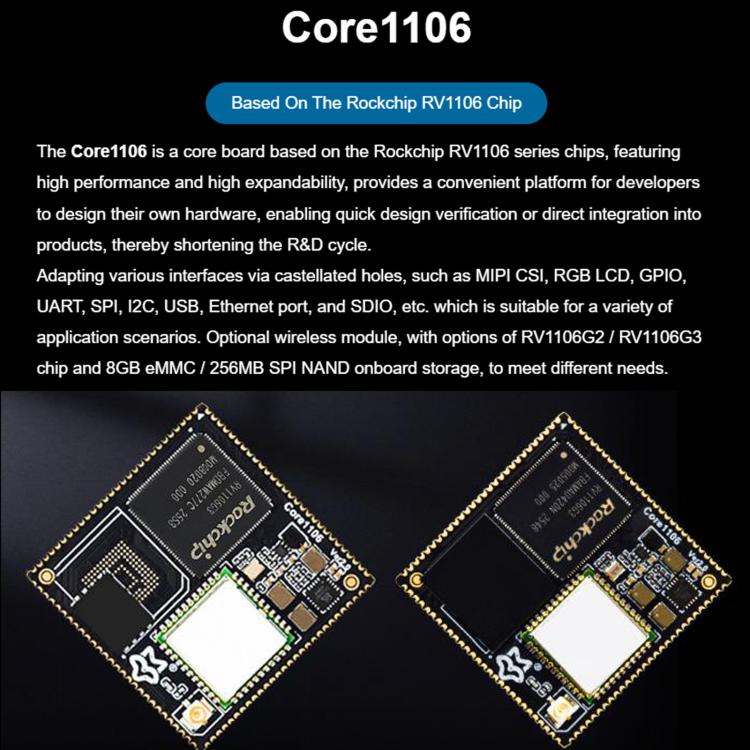

WAVESHARE 128MB Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, Spec: No WiFi(8GB eMMC)

1. Single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU
2. Built-in Rensselaer Micro's self-developed 4th generation NPU, with high precision, supporting mixed quantization of int4, int8, and int16, the int8 computing power of RV1106G3 is 1TOPS, and that of RV1106G2 is 0.5TOPS
3. Built-in Rensselaer Micro's self-developed 3rd generation ISP3.2, supporting 5 million pixels, supporting various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction
4. Has strong encoding performance, supporting intelligent encoding, adapting to the scene to save the bitstream automatically, saving more than 50% of the bit rate compared to the conventional CBR mode, achieving high-definition picture quality while efficiently utilizing storage space
5. The built-in 16-bit DRAM DDR3L can meet the demanding memory bandwidth requirements

Parameters
1. Processor: Cortex A7, 1.2GHz
2. ISP input support: 5M at 30fps
3. Video encoding: hardware encoding, supports MJPEG, H264, H265
4. Display interface: parallel RGB 18-bit x 1
5. Camera interface: MIPI CSI 2-lane x 2 or MIPI CSI 4-lane x 1
6. Microphone interface: analog differential MIC interface x 2
7. Audio output interface: LINEOUT x 1
8. USB interface: USB 2.0 Host/Device
9. Ethernet interface: 10/100M Ethernet controller and embedded PHY
10. Other resources: I2S x 3, I2C x 5, SPI x 2, SDIO x 2, ADC x 2, UART x 6, PWM x 12

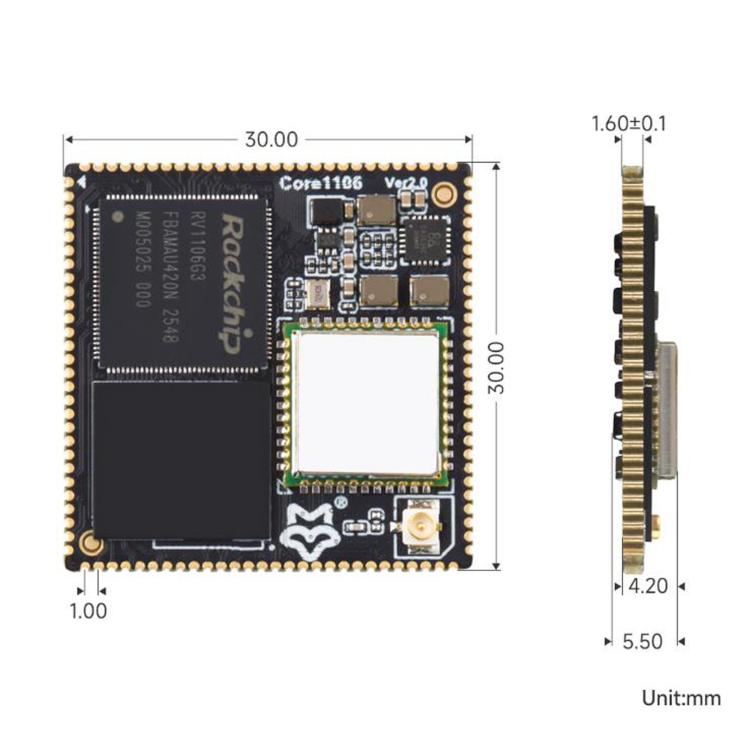

11. Core board size: 3 x 3cm
12. Stamps hole: 112 Pin
