1. WiFi Frequency Bands: VM1200: 2.4G + 5G; VM1800: 5G
2. Single/Dual Band: VM1200: Dual-band; VM1800: Single-band
3. Wireless Transmission Rate: VM1200: 300Mbps (2.4G) + 900Mbps (5G); VM1800: 1800Mbps
4. Functions: WiFi Router/Bridge/Repeater/AP
5. Wireless Transmit Power: 2.4G: 18dBm/21dBm; 5G: 18dBm/23dBm
6. Ethernet Port Type: 3 x Gigabit Ethernet ports

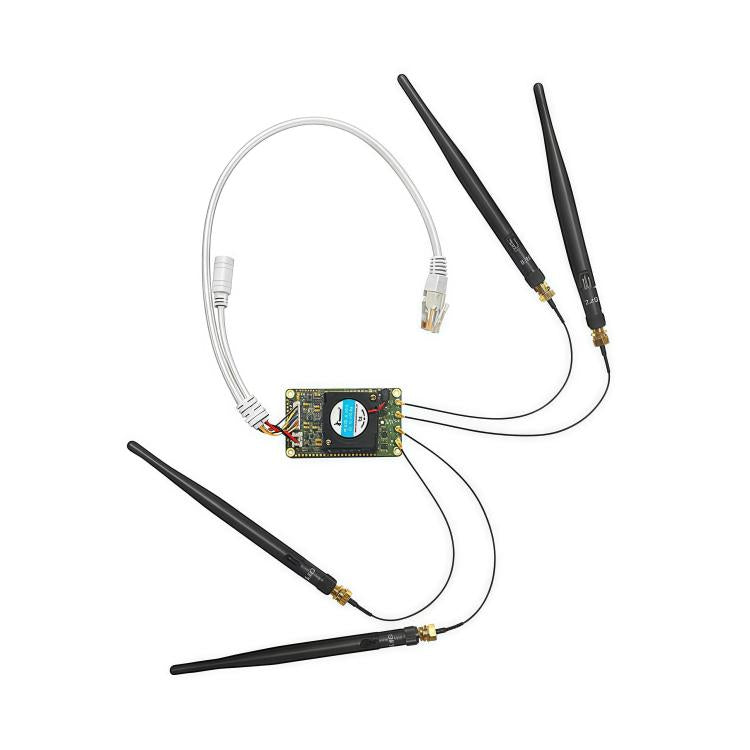

7. Antennas: 4 external antennas
8. Antenna Connector Type: IPEX Gen 1
9. Antenna Interface Type: SMA (Female/Jack)
10. IP and MAC Passthrough: Supported
11. Max Stored Hotspots: 100
12. Max Scanned Hotspots: VM1200: 256; VM1800: 128
13. Auto-reconnect Function: Supported
14. Firewall: Supported
15. Smart Fan Control (Start/Stop): Supported
16. Serial Ports: 2 x UART (TTL level)
17. Power Supply Voltage (Recommended Power): DC 12V-24V (20W)
19. Dimensions: Approx. 6.5 x 3.8 x 1.94 cm

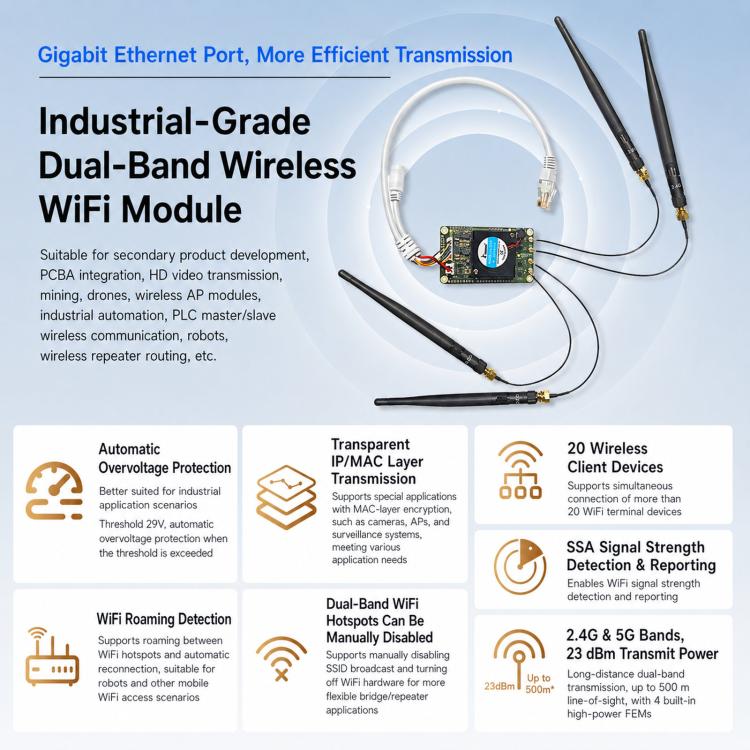

Features:

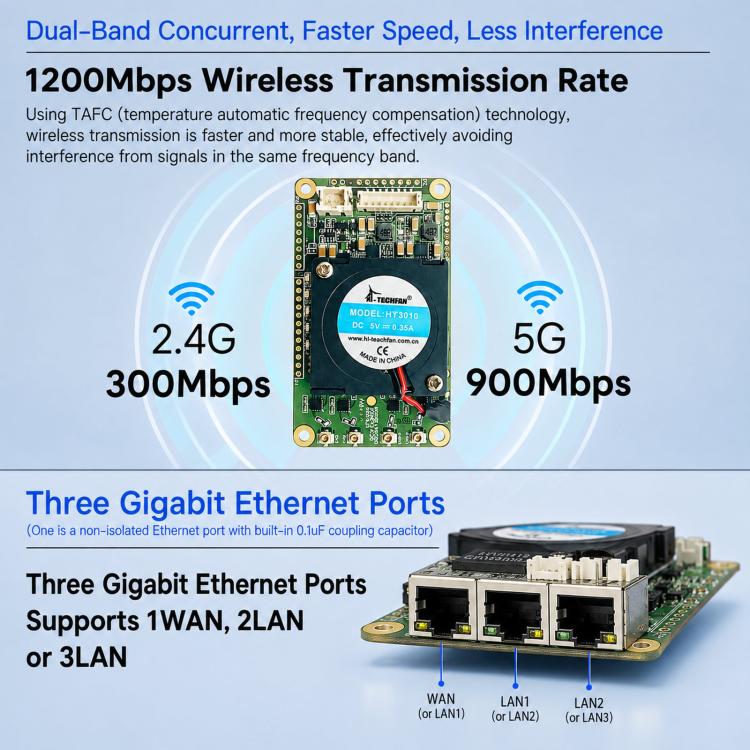

1. Equipped with 3 Gigabit Ethernet ports; supports flexible configuration (1 WAN/2 LAN or 3 LAN) for seamless high-speed conversion between wired and wireless data.
2. Compliant with 802.11ac/a/b/g/n wireless protocols; supports simultaneous dual-band operation at 2.4GHz (300Mbps) and 5.8GHz (900Mbps), effectively improving transmission efficiency and reducing co-channel interference.

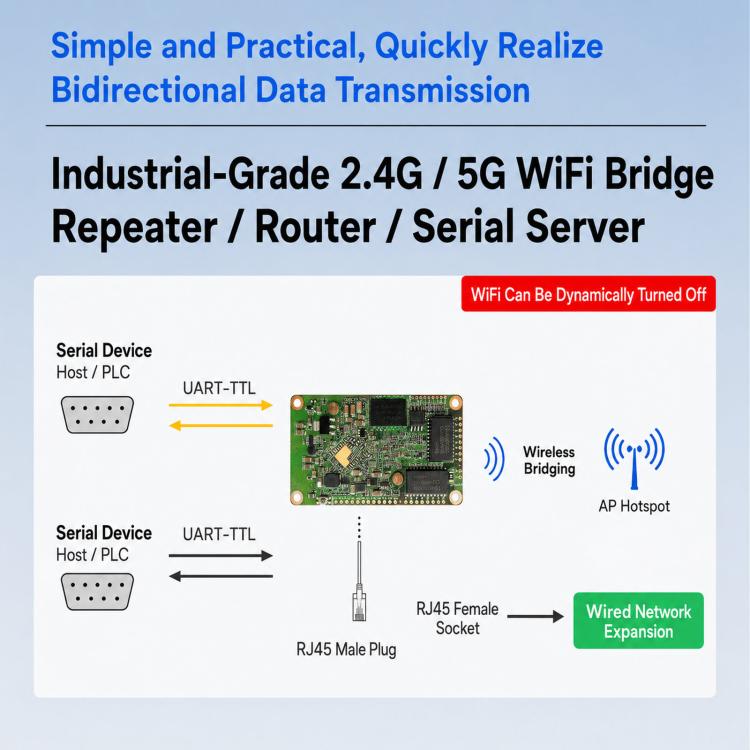

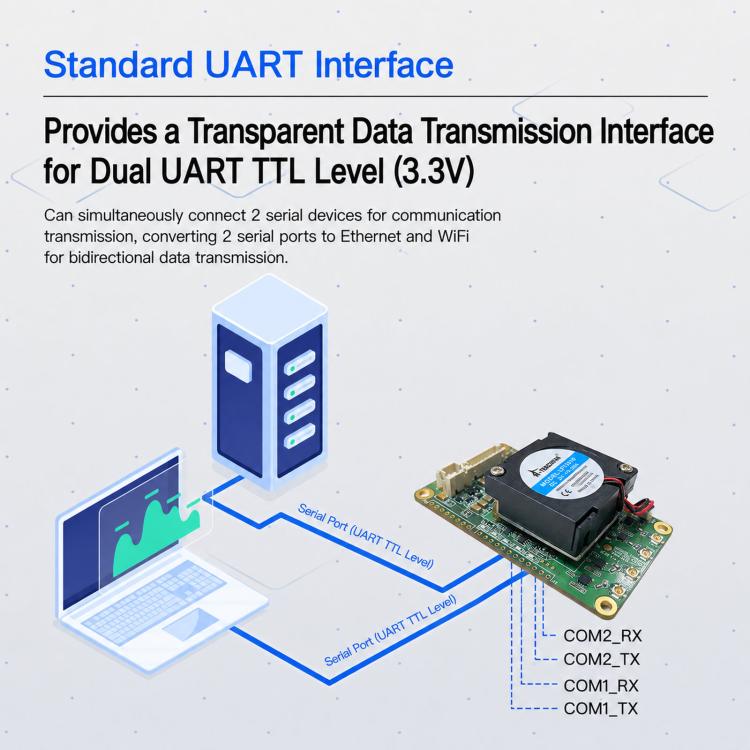

3. Provides dual UART TTL interfaces. 4. Features a 3.3V level transparent transmission interface capable of connecting two serial devices simultaneously, easily enabling dual-channel serial-to-Ethernet and serial-to-WiFi transparent data transmission.

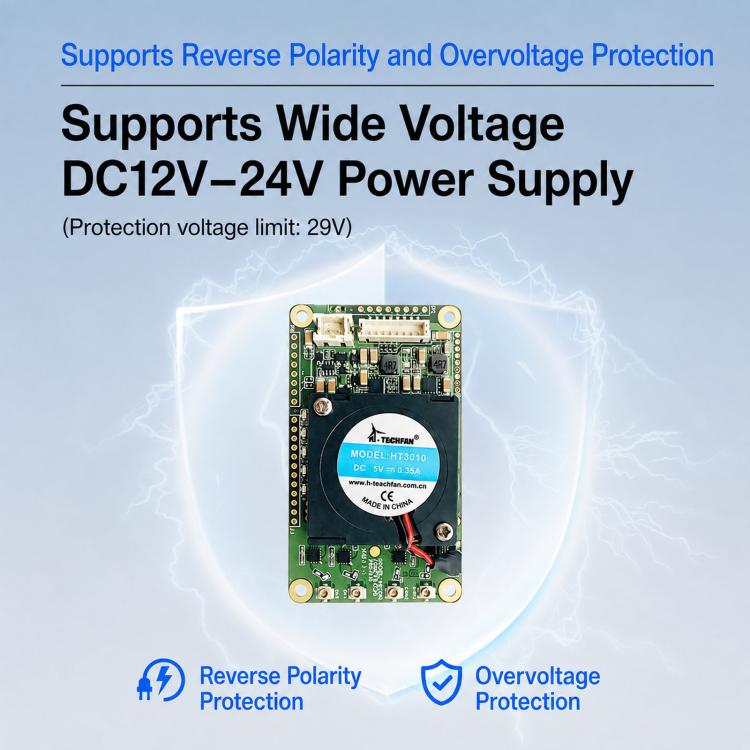

5. Supports DC 12V–24V industrial-grade wide-voltage power input; includes over-voltage protection (up to 29V) and reverse polarity protection to ensure safe operation.
6. Supports ICMP functionality for the exchange of control messages between IP hosts and routers.
7. Allows for flexible adjustment of transmit power in high-density deployment scenarios with significant interference, thereby reducing inter-device signal interference and enhancing wireless signal stability.
8. Equipped with four built-in FEMs and an intelligent, auto-start/stop cooling fan for superior heat dissipation and more stable operation.
Specification:
|
Package Weight
|
| One Package Weight |
0.16kgs / 0.36lb
|
| One Package Size |
15cm * 10cm * 3cm / 5.91inch * 3.94inch * 1.18inch
|
| Carton Weight |
17.00kgs / 37.48lb
|
| Carton Size |
42cm * 30cm * 30cm / 16.54inch * 11.81inch * 11.81inch
|
| Loading Container |
20GP: 705 cartons * 100 pcs = 70500 pcs
40HQ: 1637 cartons * 100 pcs = 163700 pcs
|
|
