1. Wireless functions: Wireless repeater/bridge/router/serial-to-WiFi
2. Wireless frequency band: 2.4GHz
3. Wireless protocol: 802.11 b/g/n
4. Wireless transmission rate: 300Mbps
5. Operating voltage: 5V–24V (typical 12V/1A)
6. Dimensions: Approx. 9.4 x 4.5 x 1.5 cm
Features:

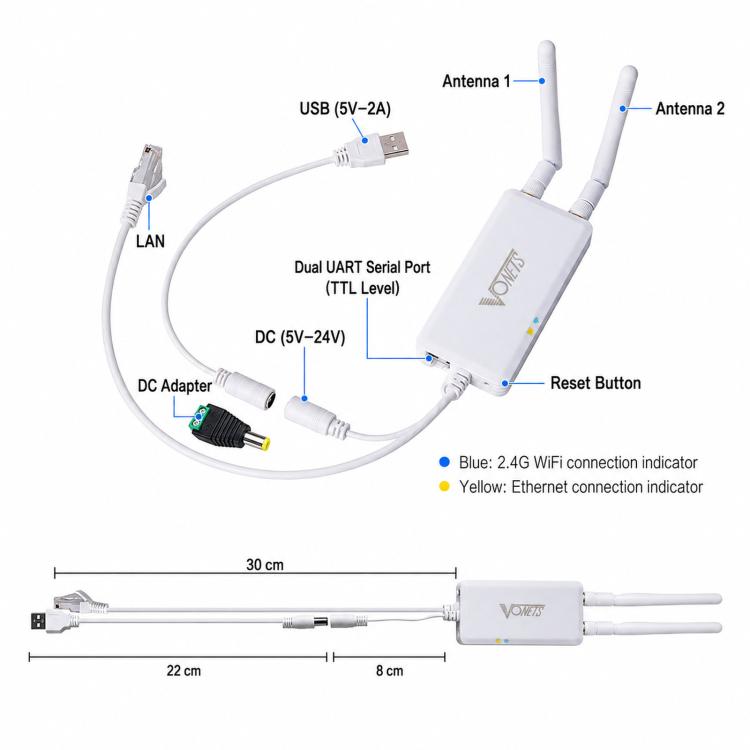

1. Supports standard UART serial interface (TTL levels: LVTTL-3.3V/CMOS-3.3V), enabling bidirectional transparent data transmission between serial and WiFi/Ethernet interfaces
2. Utilizes the 802.11b/g/n wireless protocol, achieving transmission rates of up to 300Mbps in the 2.4GHz band

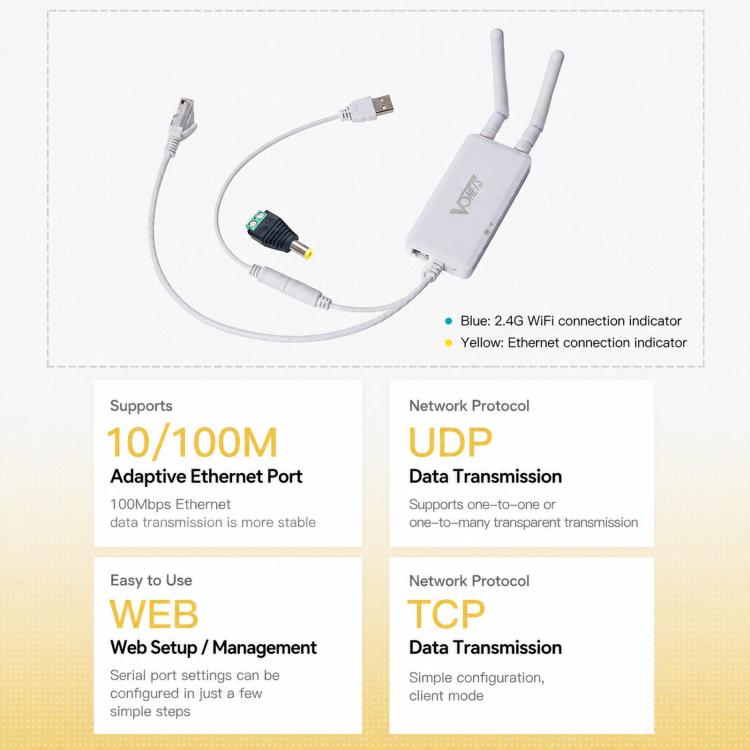

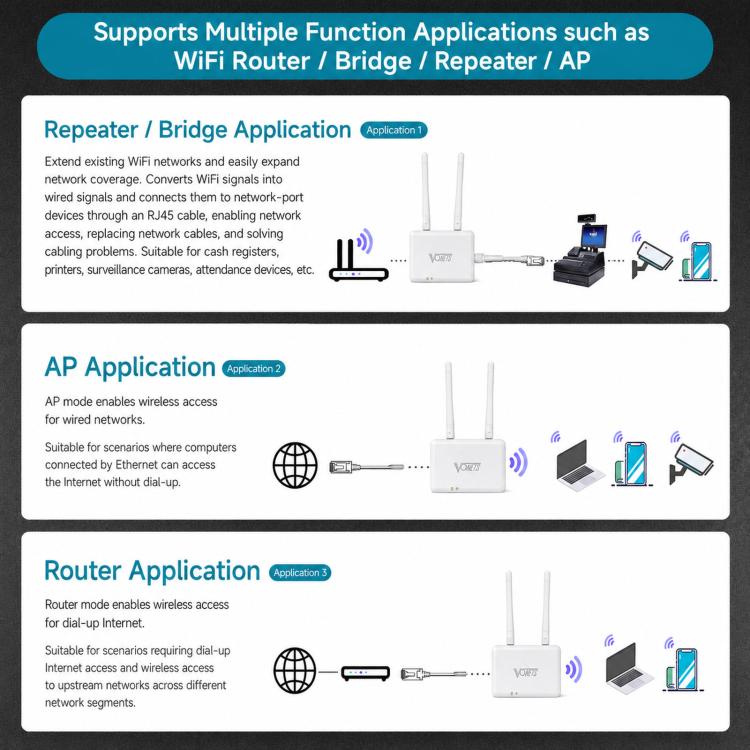

3. Equipped with a 10/100M adaptive Ethernet port; supports multiple modes including repeater, bridge, AP, router, and serial server

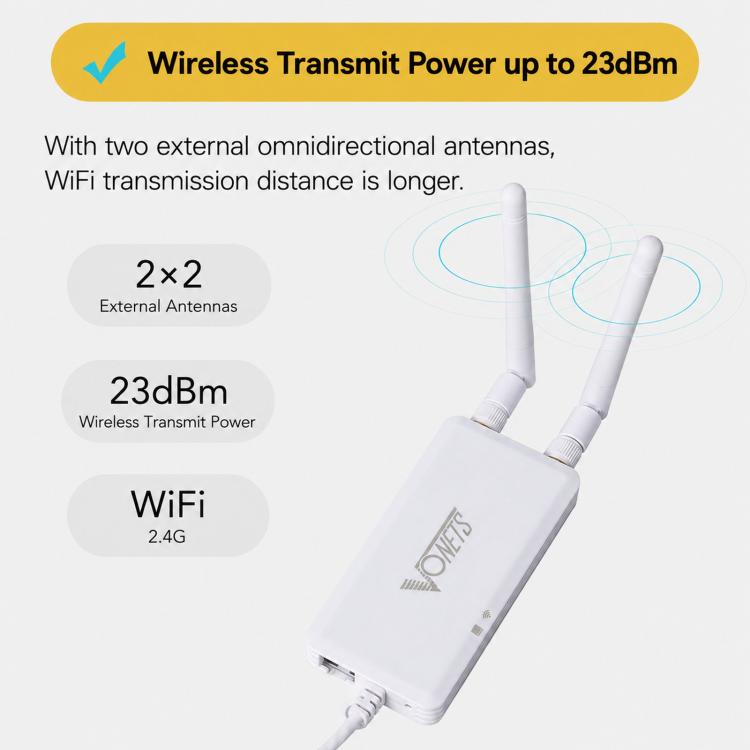

4. Features dual external 2x2 whip antennas with a maximum wireless transmit power of 23dBm, effectively improving signal coverage and transmission stability
5. Supports two power supply methods: wide-range DC input (5V–24V) and USB input (5V/2A)
6. Supports web-based graphical configuration for quick and easy setup of network and serial parameters

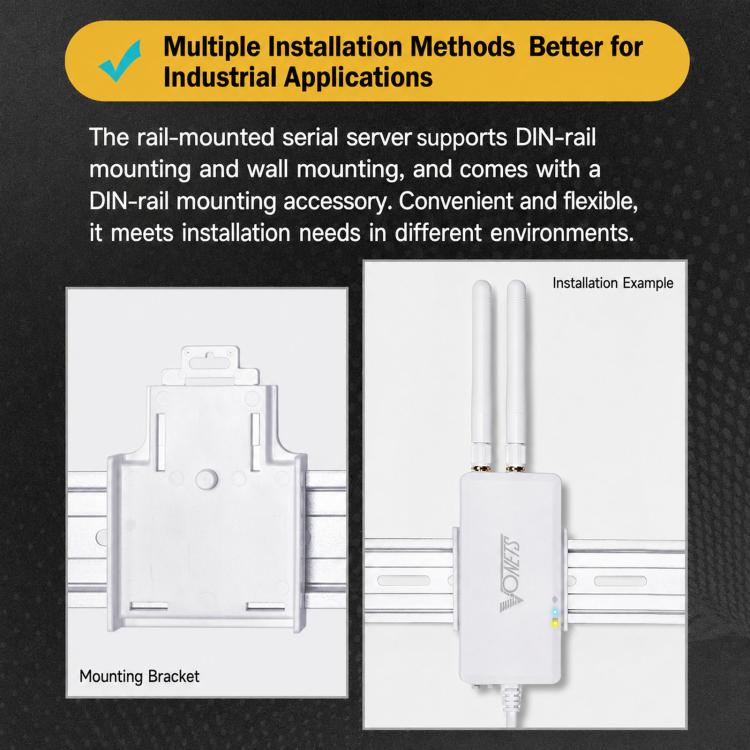

7. Supports DIN-rail and wall-mount installation; suitable for applications such as industrial automation, surveillance, and data acquisition
Specification:
|
Package Weight
|
| One Package Weight |
0.16kgs / 0.36lb
|
| One Package Size |
16cm * 12cm * 4cm / 6.3inch * 4.72inch * 1.57inch
|
| Carton Weight |
13.50kgs / 29.76lb
|
| Carton Size |
35cm * 35cm * 35cm / 13.78inch * 13.78inch * 13.78inch
|
| Loading Container |
20GP: 621 cartons * 80 pcs = 49680 pcs
40HQ: 1443 cartons * 80 pcs = 115440 pcs
|
|
