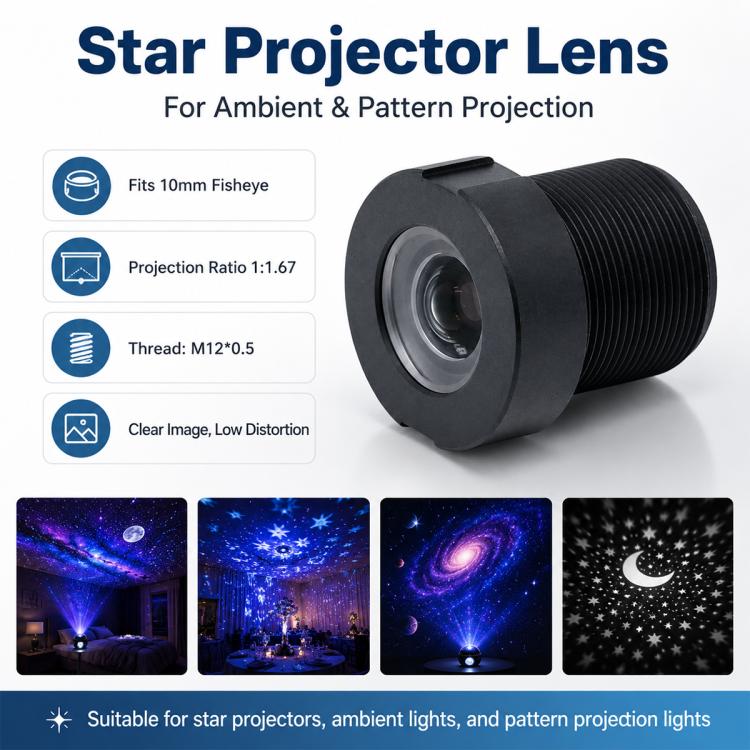

Features:
1. 10mm Film Compatible: Designed for projection systems using 10mm film, providing a suitable optical solution for star projector lights and similar projection devices.
2. 1:1.67 Projection Ratio: The 1:1.67 projection ratio helps achieve efficient image projection with a balanced projection distance and image size.

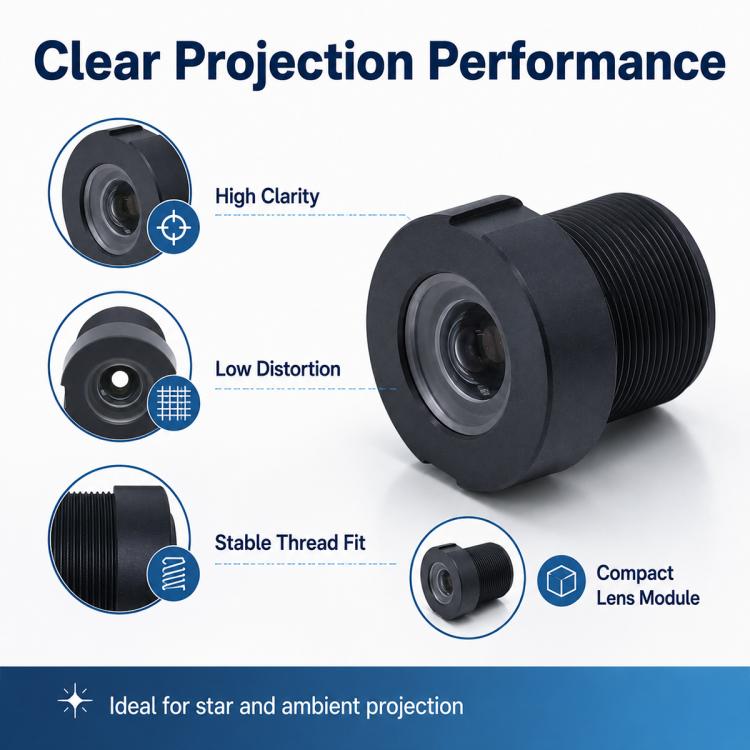

3. Low Distortion Optical Design: The lens is designed to provide clear projection with reduced image distortion, helping maintain the shape and details of projected patterns.
4. F2.6 Aperture: The F2.6 aperture provides stable light transmission for clear and bright projection effects.

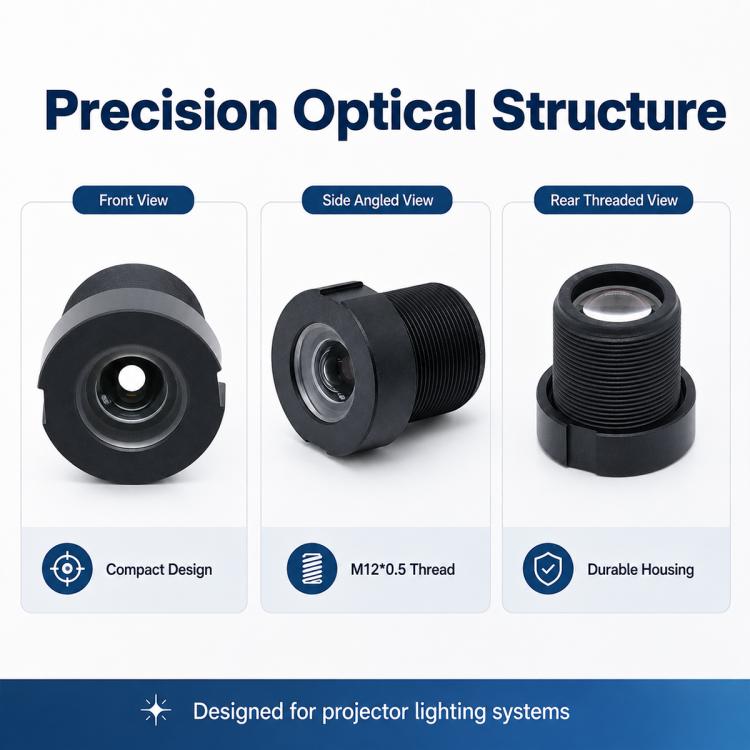

5. Compact Fixed Focus Design: Measuring only 14mm in diameter and 18.22mm in length, the compact fixed focus lens is suitable for space-constrained projection devices.
Specification:
1. Maximum Aperture: F2.6
2. Focal Length: 6mm
3. Lens Type: Fixed Focus Lens
4. Projection Ratio: 1:1.67
5. Waterproof Rating: Standard Structure, Not Waterproof
6. Image Format: Diameter 10mm
7. Lens Structure: 2G2P (Hybrid Glass-Plastic)
8. Minimum Focusing Distance: 0.2m
9. Wide Angle: 78.28 degrees
10. Viewing Angle: Diagonal 70.6 degrees / Horizontal 62.88 degrees / Vertical 38.4 degrees
11. Lens Dimensions: Diameter 14mm x Length 18.22mm
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
52cm * 42cm * 42cm / 20.47inch * 16.54inch * 16.54inch
|
| Loading Container |
20GP: 290 cartons * 500 pcs = 145000 pcs
40HQ: 674 cartons * 500 pcs = 337000 pcs
|
|
