Feature:

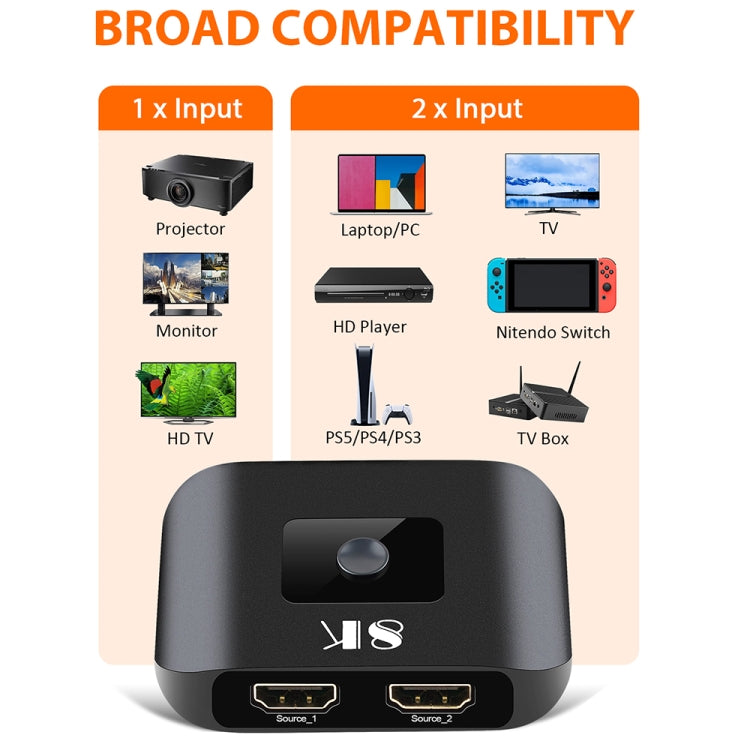

1. Two HDMI inputs converted to one HDMI video output.
2. Input and output Resolution: up to 8Kp60.
3. LED indication: when working, LED relative to is light.
4. Easy to install, play and plug.
5. Need DC5V power supply.
Specification:
1. HDMI resolution: 8K60HZ / 4K120HZ / 1080p / 1080i / 720p / 576p / 480p
2. Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
3. Input/Output DDC signal: 5Volts p-p (TTL)
4. Input cable distance: less than 15m AWG26 HDMI standard cable
5. Output cable distance: less than 20m AWG26 HDMI standard cable
6. Max working current: 500mA
7. Operating Temperature range: -15 to +55 degree Celsius
8. Operating Humidity range: 5 to 90%RH (No Condensation)

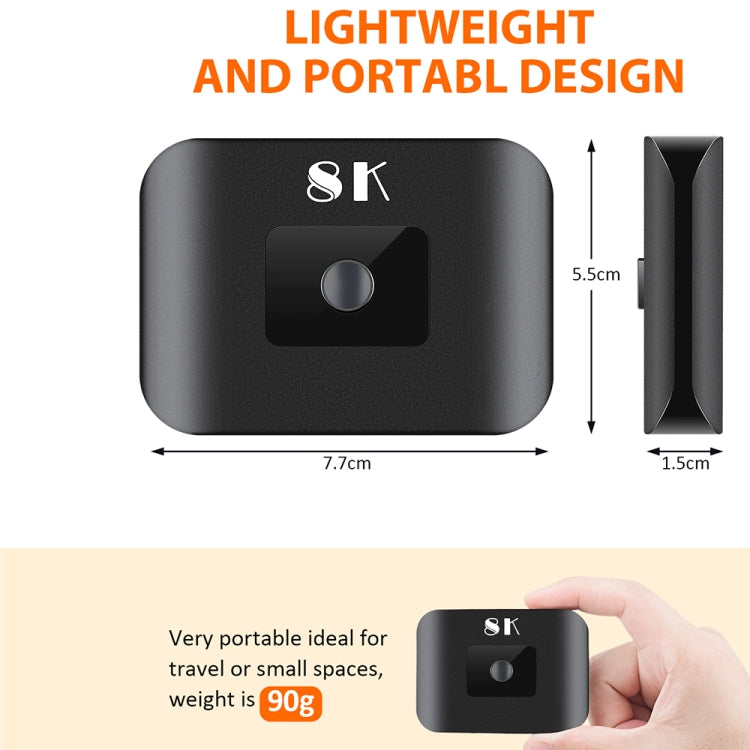

9. Dimension (L x W x H): 77x55x15 (mm)
10. Weight: 90g
Specification:
|
Package Weight
|
| One Package Weight |
0.13kgs / 0.28lb
|
| One Package Size |
10.5cm * 8.5cm * 2.8cm / 4.13inch * 3.35inch * 1.1inch
|
| Carton Weight |
25.90kgs / 57.10lb
|
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 522 cartons * 200 pcs = 104400 pcs
40HQ: 1212 cartons * 200 pcs = 242400 pcs
|
|
