1. Through the motherboard’s M.2 NVMe (Key-M) slot, 8 SATA 3.0 ports can be reliably expanded, significantly increasing the number of hard drives that can be connected.
2. Supports the SATA 3.0 6Gbps transfer protocol, with measured read and write speeds of up to 480–530 MB/s, meeting everyday data transfer and storage needs.
3. Widely compatible with various systems; driver-free design; supports mainstream operating systems.
4. Features the Yunlan YLB3118 high-performance, low-power controller chip to ensure stability during concurrent operation of multiple drives.
5. Output Interface: SATA 3.0 6 Gbps (measured at 480–530 MB/s)
6. Input Interface: M.2 KEY-M (does not support KEY-B NGFF slots)
7. Interface Speed: PCIe 2x 3.0
8. Supported Slots: M.2 KEY-M 2280

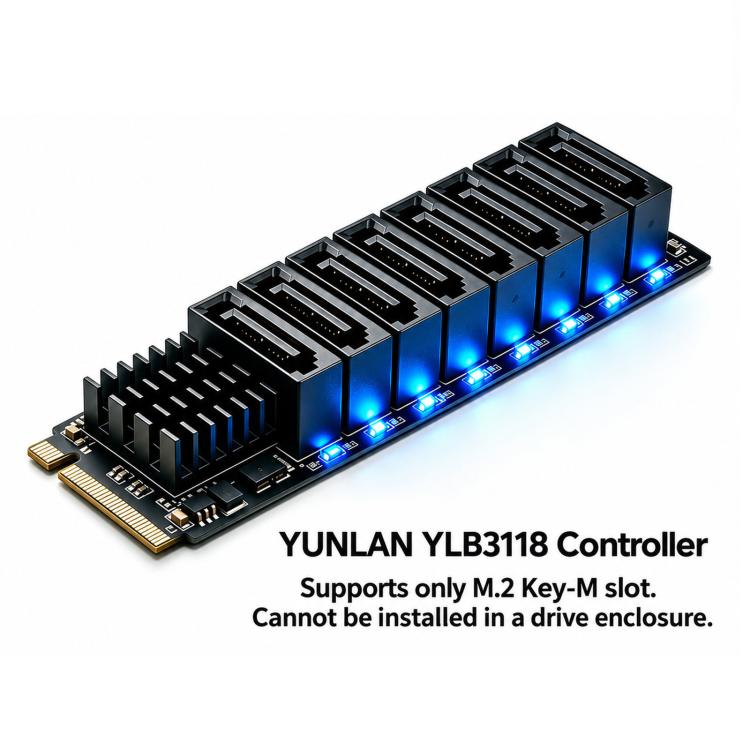

9. Controller: YLB3118

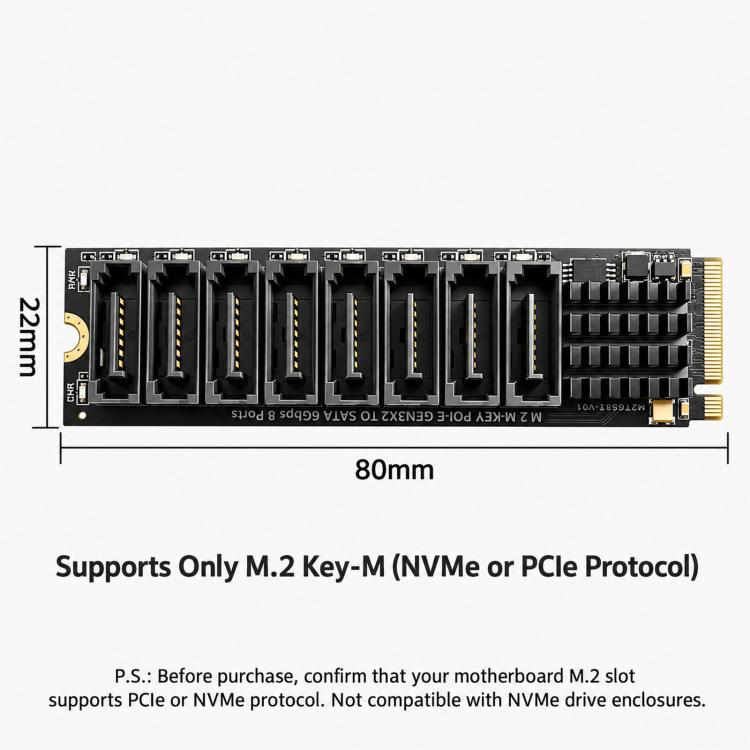

10. Dimensions: Approx. 8 x 2.2cm
Specification:
|
Package Weight
|
| One Package Weight |
0.12kgs / 0.27lb
|
| One Package Size |
15cm * 10cm * 4cm / 5.91inch * 3.94inch * 1.57inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
|
| Loading Container |
20GP: 522 cartons * 100 pcs = 52200 pcs
40HQ: 1212 cartons * 100 pcs = 121200 pcs
|
|
