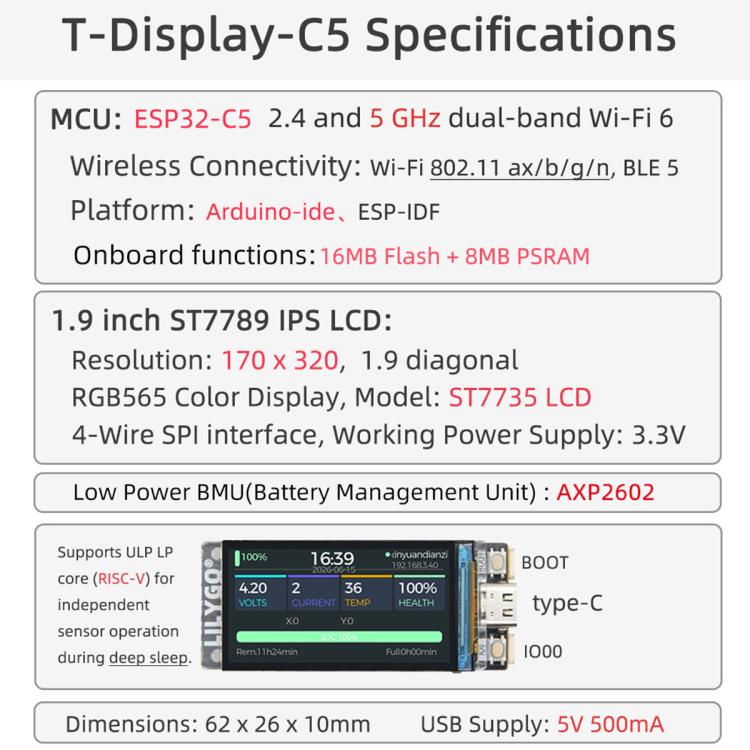

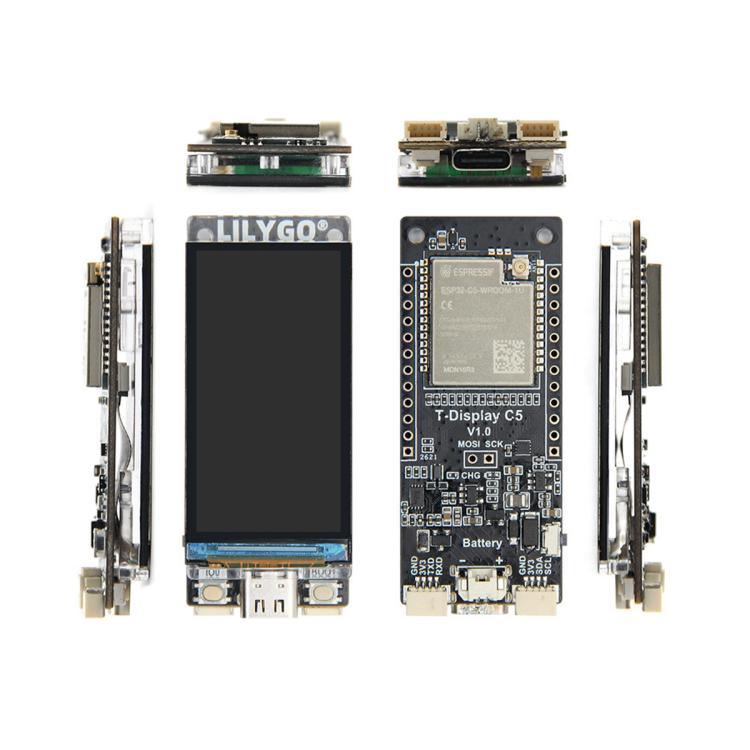

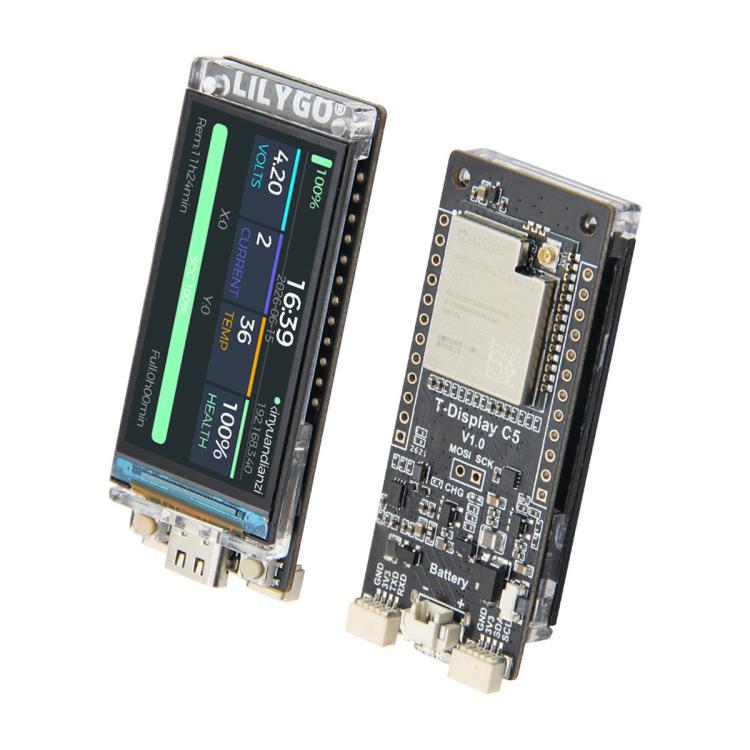

1. Powered by ESP32-C5 chip with 16MB Flash and 8MB PSRAM, supports Wi-Fi 6 and BLE 5

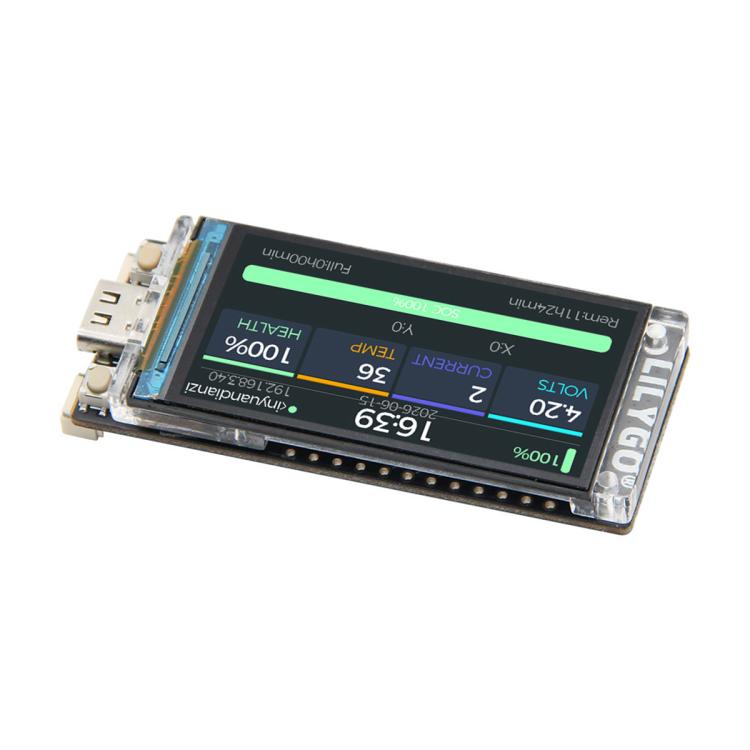

2. Onboard 1.9-inch ST7789 IPS color LCD, 170x320 resolution with 4-wire SPI interface
3. Built-in AXP2602 battery management unit for lithium battery charging and low power control

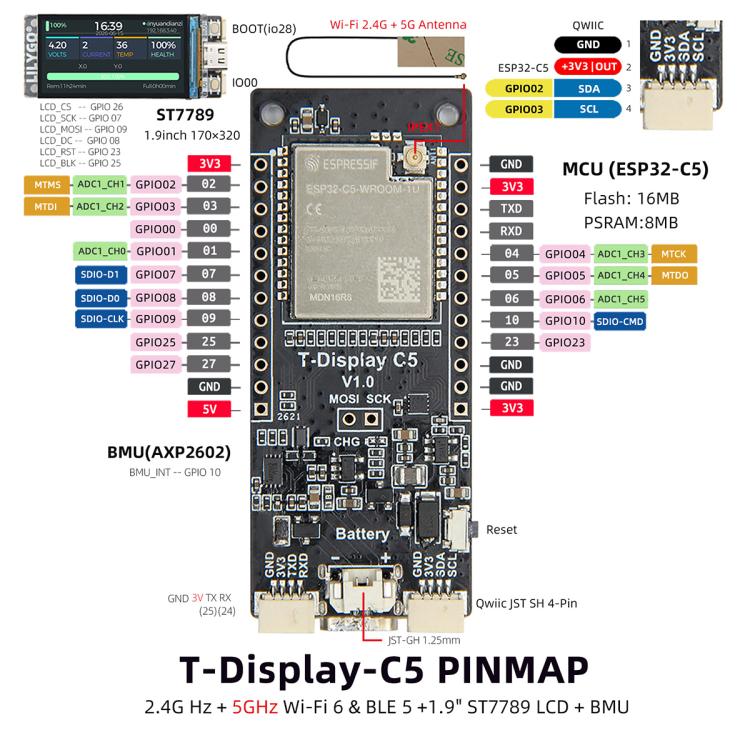

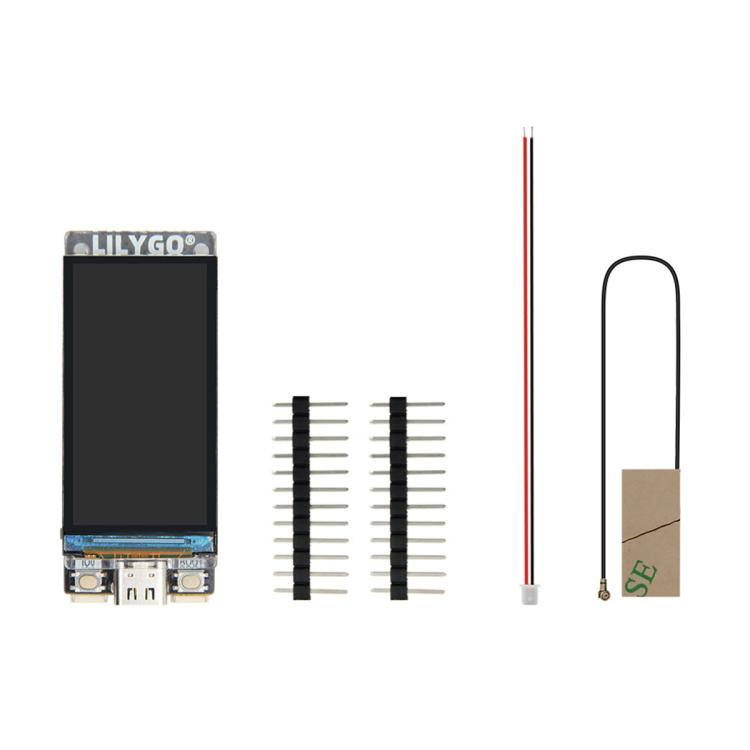

4. Equipped with Type-C port and Qwiic connector, multiple GPIO pins, matched antenna and pin headers included
5. Compatible with Arduino IDE and ESP-IDF, ideal for IoT visual development projects
Specification:
|
Package Weight
|
| One Package Weight |
0.14kgs / 0.32lb
|
| One Package Size |
15cm * 11cm * 9cm / 5.91inch * 4.33inch * 3.54inch
|
| Carton Weight |
6.60kgs / 14.55lb
|
| Carton Size |
32cm * 46cm * 47cm / 12.6inch * 18.11inch * 18.5inch
|
| Loading Container |
20GP: 385 cartons * 40 pcs = 15400 pcs
40HQ: 894 cartons * 40 pcs = 35760 pcs
|
|
