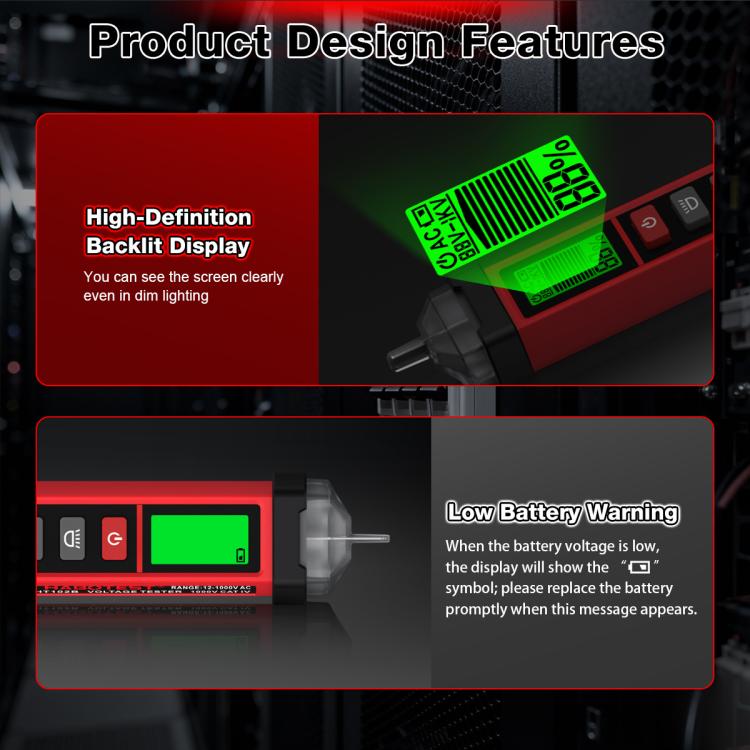

1. Display: HD dual-color backlit LCD screen, supports dual display of numerical percentage and analog bar graph

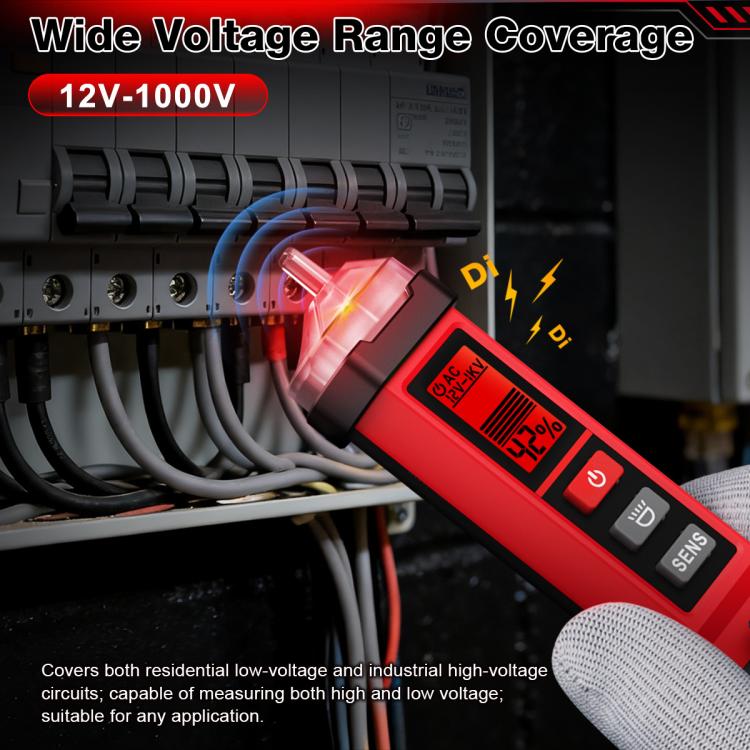

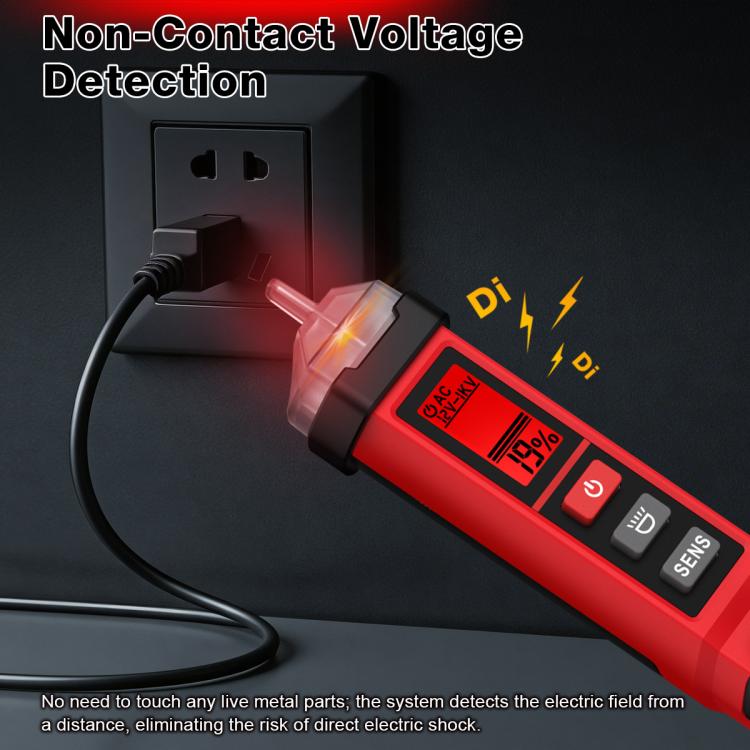

2. AC Voltage Detection Range:
-- High Sensitivity Mode: AC 12V - 1000V
-- Low Sensitivity Mode: AC 60V - 1000V
3. Rated Operating Frequency: 50Hz / 60Hz

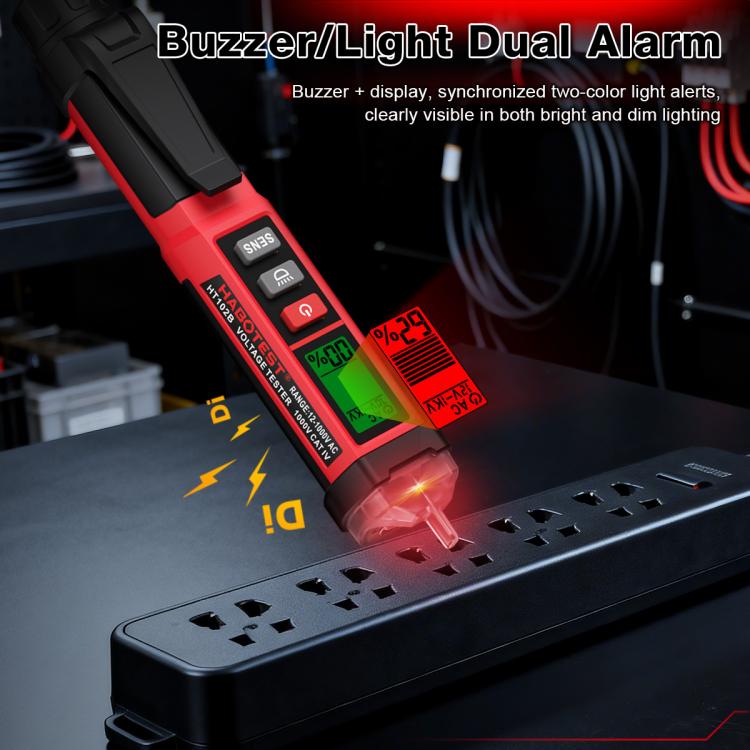

4. Alarm Method: Buzzer sound + dual-color backlit light alarm
5. Probe Shape: Flat light-transmitting sensing probe

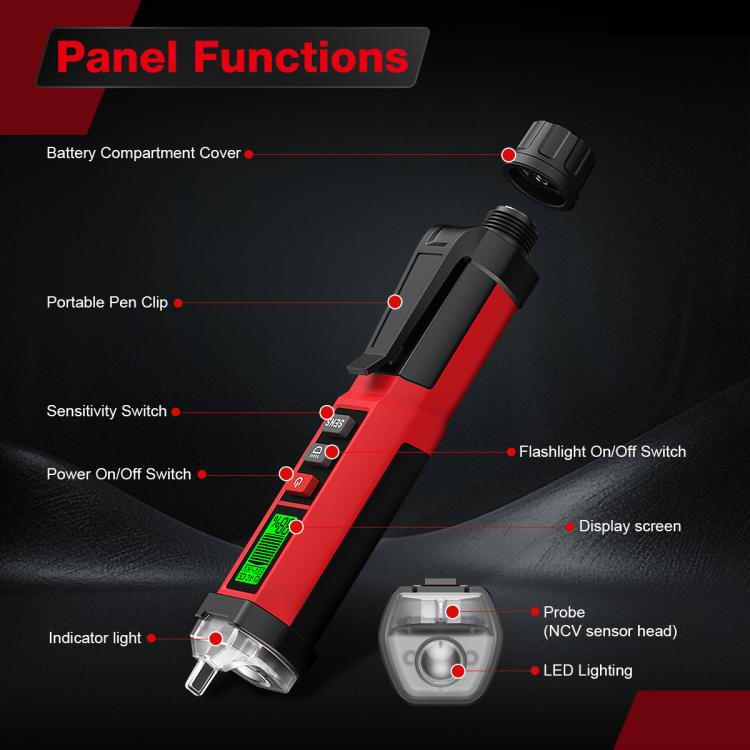

6. Backlight and Signal Indicator:
-- Strong Signal / Live Wire: Red backlight + high-frequency buzzer + higher percentage value + full bar graph
-- Weak Signal / Neutral Wire: Green backlight + slow buzzer + lower percentage value + low bar graph

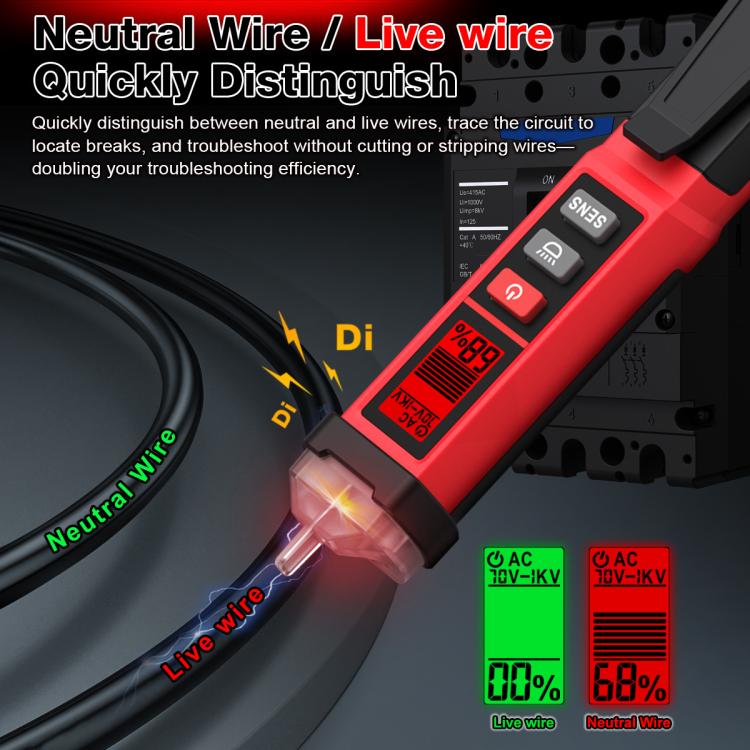

7. Live / Neutral Wire and Phase Sequence Identification: Accurately distinguishes live and neutral wires based on LCD percentage value, bar graph, and backlight color; supports breakpoint detection and phase sequence testing
8. Sensitivity Adjustment: Independent SENS button for one-touch switching between high and low sensitivity modes

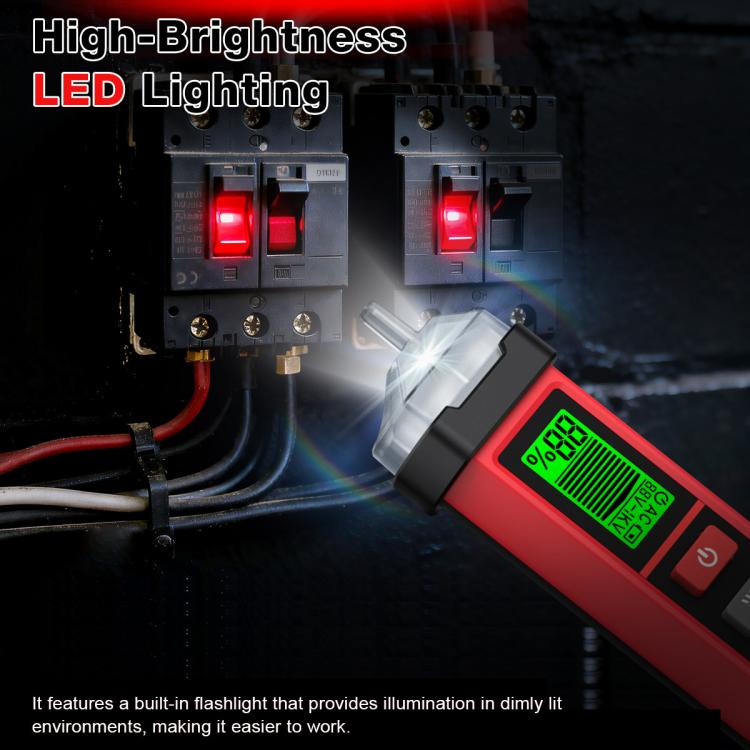

9. Flashlight Function: Front-end probe with built-in bright LED lights up dark work environments
10. Auto Power-Off: Automatically turns off after approx. 5 minutes of inactivity or no sensing signal to save power
11. Low Battery Indicator: Screen displays low battery icon to prompt timely battery replacement

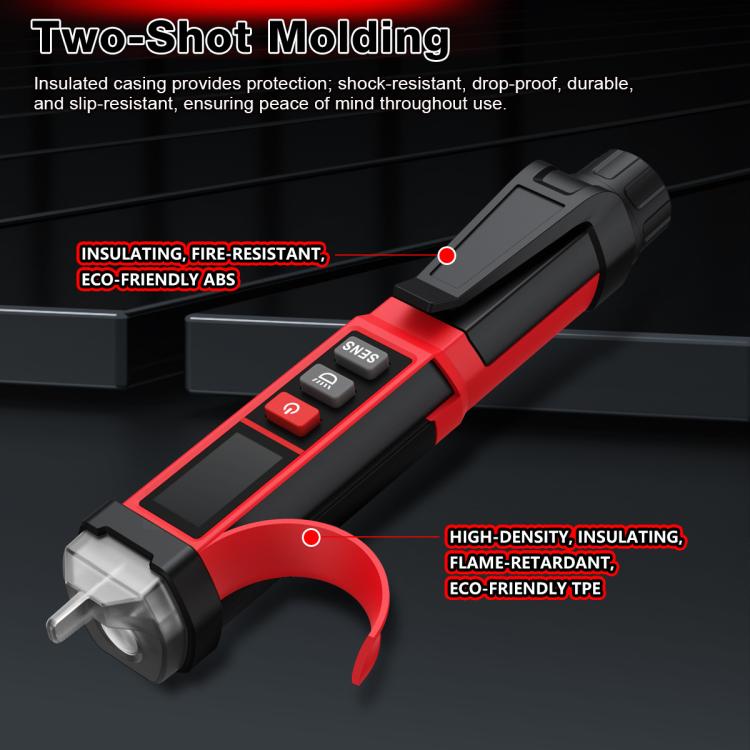

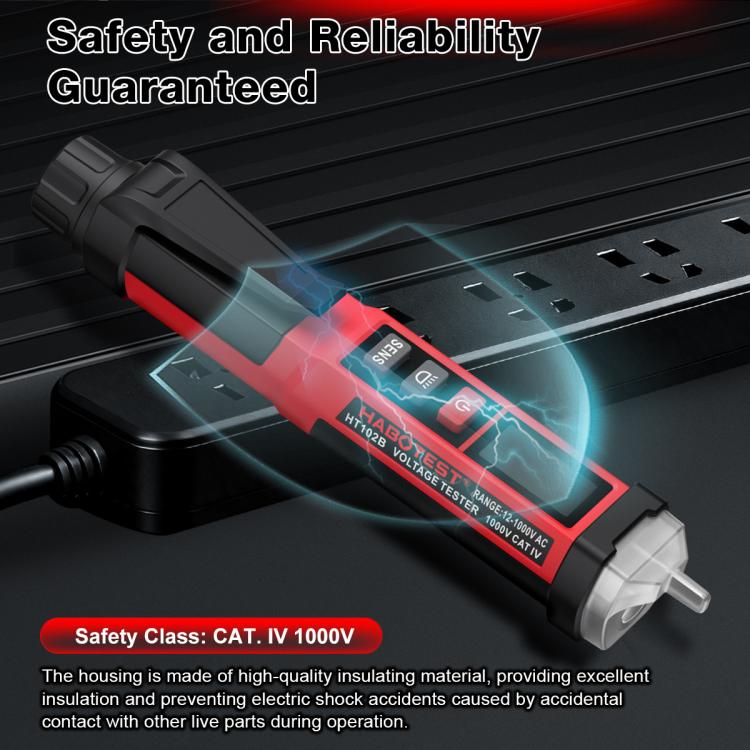

12. Safety Rating: CAT. IV 1000V highest explosion-proof safety level, fully insulated shock-proof material

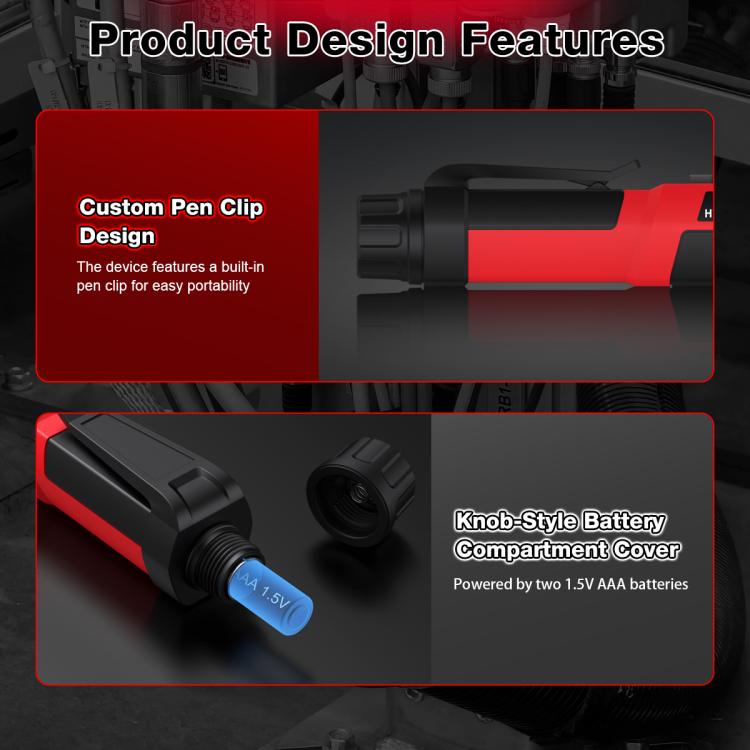

13. Power Supply and Battery Cover: 2 x 1.5V AAA batteries (Batteries not included)

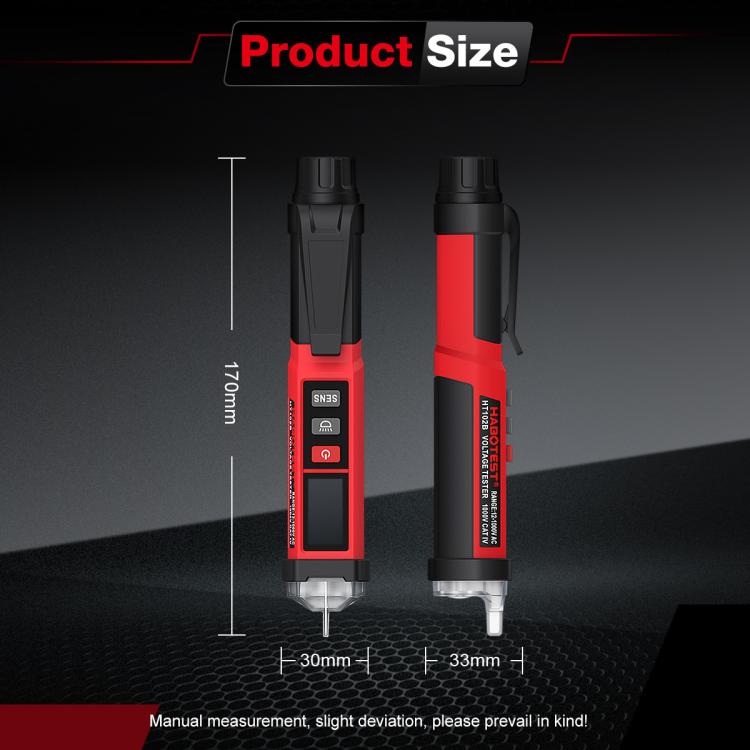

14. Product Dimensions and Net Weight: 170 x 30 x 33 mm, net weight approx. 75 g

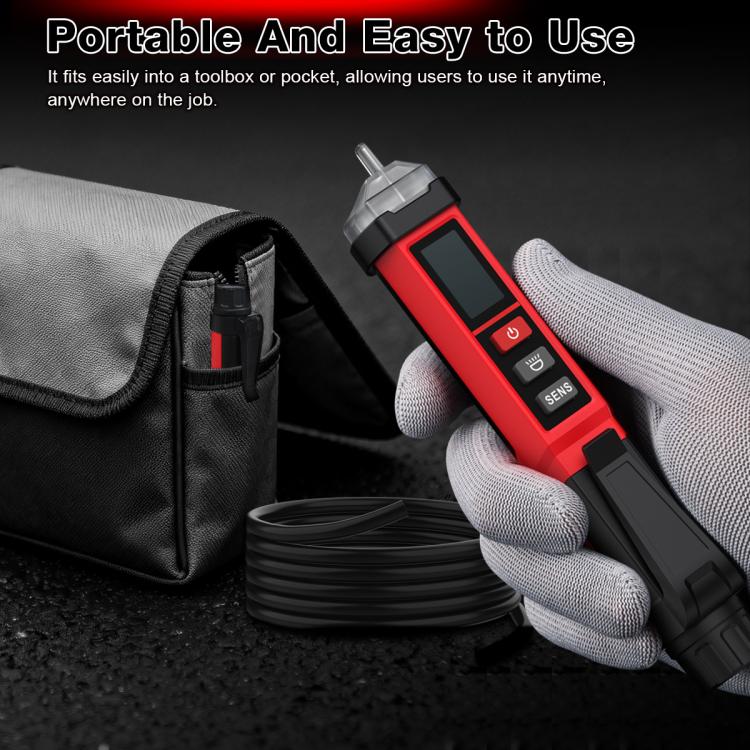

15. Portable Design: Pen clip design for easy carrying in pockets
Specification:
|
Package Weight
|
| One Package Weight |
0.10kgs / 0.23lb
|
| One Package Size |
20cm * 7cm * 6cm / 7.87inch * 2.76inch * 2.36inch
|
| Carton Weight |
17.10kgs / 37.70lb
|
| Carton Size |
46cm * 38cm * 30cm / 18.11inch * 14.96inch * 11.81inch
|
| Loading Container |
20GP: 508 cartons * 160 pcs = 81280 pcs
40HQ: 1180 cartons * 160 pcs = 188800 pcs
|
|
