Features:
1. F1.0 Large Aperture: The F1.0 aperture allows more light to enter the lens, helping improve image brightness and clarity in low-light environments.
2. 134 Degree Wide Angle: The ultra-wide 134 degree field of view captures a broader scene, making it suitable for FPV flying, aerial photography, and action camera applications.
3. Lightweight Compact Design: With a diameter of only 14mm and a length of 17.32mm, the compact lens helps reduce overall camera weight and is suitable for lightweight FPV drone setups.
4. Durable Hybrid Construction: The 2G5P hybrid glass-plastic optical structure combines lightweight construction with reliable optical performance for demanding aerial applications.
5. Waterproof Front Design: The front of the lens features an IP67 waterproof rating, providing added protection against water and dust during outdoor use.
Specification:

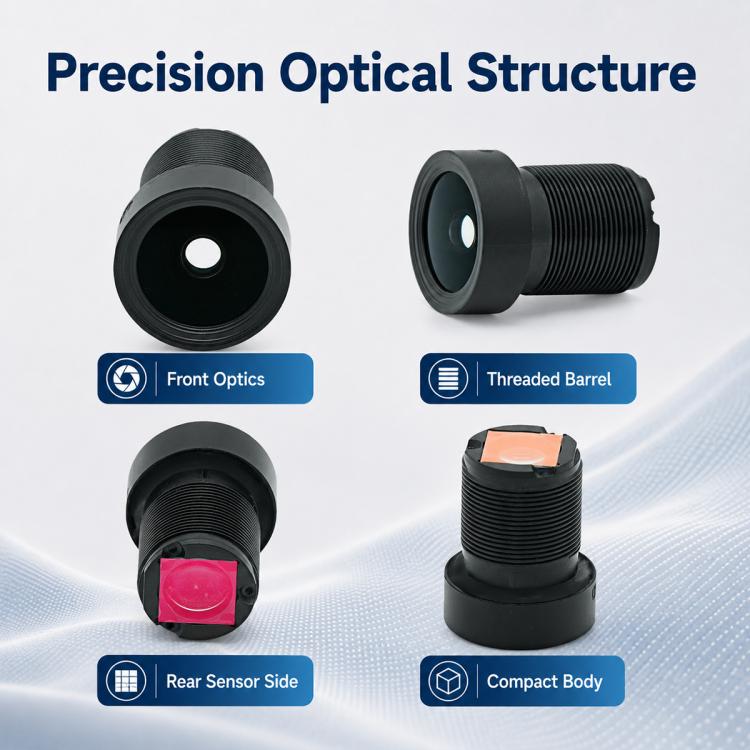

1. Lens Structure: 2G5P (Hybrid Glass-Plastic)
2. Maximum Aperture: F1.0
3. Minimum Focusing Distance: 0.2m
4. Field of View: 134 degrees
5. Viewing Angle: Diagonal 134 degrees / Horizontal 113 degrees / Vertical 60 degrees
6. Lens Dimensions: Diameter 14mm x Length 17.32mm
7. Focal Length: 3.09mm
8. Lens Type: Fixed Focus Lens
9. Thread Interface: M12 x 0.5
10. Image Format: 1/2.7 inch
11. Waterproof Rating: IP67 front end
12. Resolution: 8MP
Specification:
|
Package Weight
|
| One Package Weight |
0.01kgs / 0.03lb
|
| One Package Size |
10cm * 8cm * 2cm / 3.94inch * 3.15inch * 0.79inch
|
| Carton Weight |
6.00kgs / 13.23lb
|
| Carton Size |
52cm * 42cm * 42cm / 20.47inch * 16.54inch * 16.54inch
|
| Loading Container |
20GP: 290 cartons * 500 pcs = 145000 pcs
40HQ: 674 cartons * 500 pcs = 337000 pcs
|
|
