1. Dual Golf & Hunting Modes: Designed for both golf and hunting. Golf Mode supports slope measurement and flagpole locking with vibration feedback, while Hunting Mode includes BRD (Bow Range Distance), Vertical Distance, Speed Measurement, and Continuous Scan Ranging.
2. 5-1000m Long-Range Measurement: Measures targets from 5 to 1000m with a minimum measurement distance of 5m. Fast 0.3–1.0s range acquisition helps provide quick readings during outdoor activities.
3. Flagpole Lock with Vibration: In Golf Mode, the rangefinder can identify and lock onto the closer flagpole when multiple objects are in view. A circle appears around the target and the device vibrates to confirm the flagpole distance.
4. Accurate Optical Measurement: Features 6X magnification, 20mm objective diameter, 15mm eye relief, and 6.5 degrees FOV. Measurement accuracy reaches +/-0.5 yard, with 0.1-yard resolution.

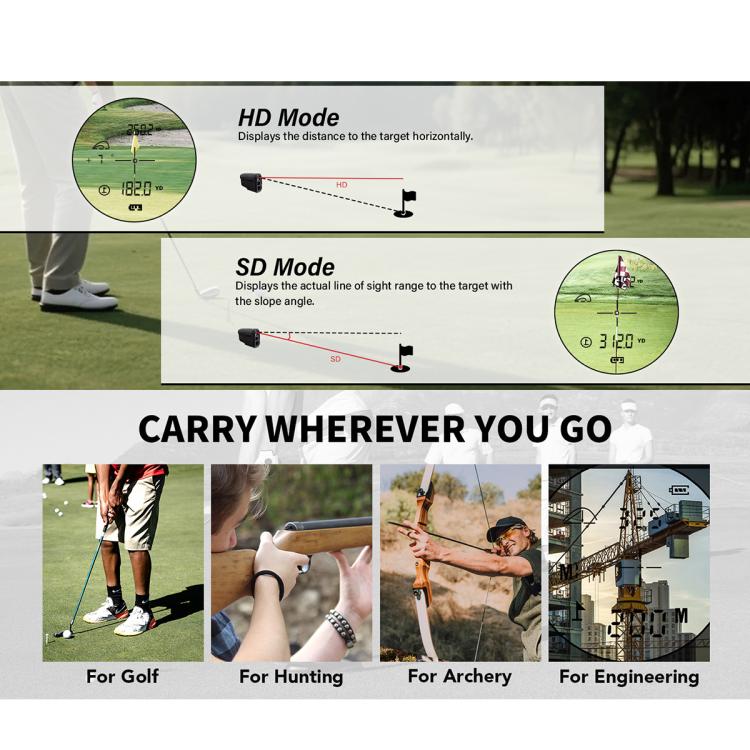

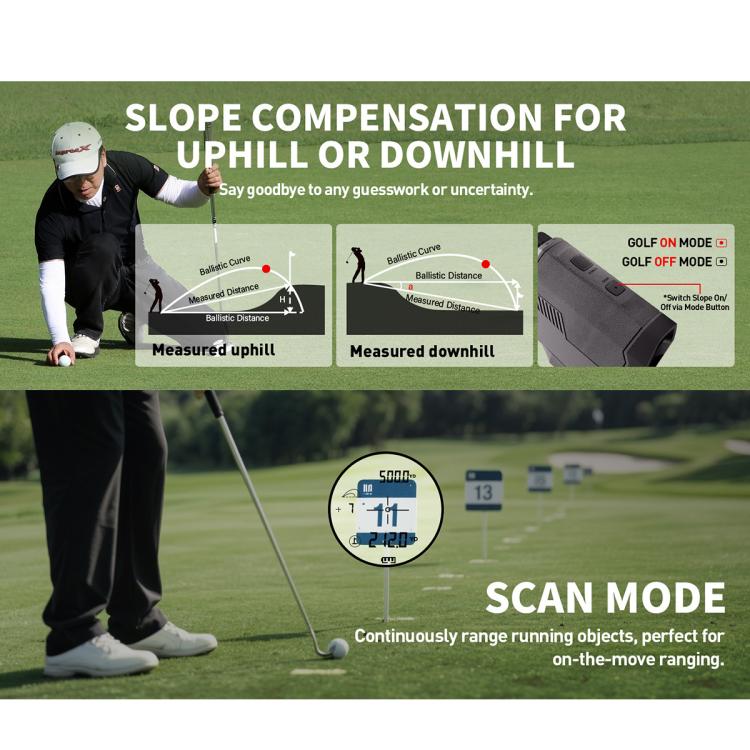

5. Slope & Outdoor Measurement: Supports an inclination range of +85 degrees to ?85 degrees with +/-1 degree inclination accuracy, making it suitable for golf courses, hunting, archery, and other outdoor applications.
Specifications:
1. Measuring Range: 5-1000m
2. Minimum Measuring Distance: 5m
3. Measurement Units: Yard (YD) / Meter (M)
4. Unit Switching: Long press the Mode button
5. Golf Mode: Slope Mode / Flagpole Locking with Vibration
6. Hunting Mode: BRD / Vertical Distance / Speed Measurement / Scan Ranging
7. Magnification: 6X
8. Objective Diameter: 20mm
9. Eye Relief: 15mm
10. Field of View: 6.5 degrees
11. Measuring Accuracy: +/-0.5 Yard
12. Measuring Resolution: 0.1 Yard
13. Range Acquisition Time: 0.3-1.0s
14. Inclination Range: +85 degrees to 85 degrees
15. Inclination Accuracy: +/-1 degree
16. Display Type: LCD
17. Power Source: CR2 Battery
Golf Mode, Flagpole Locking:
Aim the target marker at the desired flagpole and long press the Measurement/Scan button. Slowly move the target marker across the flagpole or target. When the rangefinder detects the closer target, a circle appears around the flagpole and the device vibrates, confirming the locked flagpole distance on the display.
Precautions:
1. This is a long-range laser rangefinder. The minimum measurable distance is 5m.
2. Do not measure through glass or other transparent materials, as reflections can affect laser measurement accuracy.
3. Rain, fog, dust, and severe air pollution may interfere with laser transmission and affect measurement results.
Specification:
|
Package Weight
|
| One Package Weight |
0.30kgs / 0.67lb
|
| One Package Size |
16cm * 12cm * 7cm / 6.3inch * 4.72inch * 2.76inch
|
| Carton Weight |
13.00kgs / 28.66lb
|
| Carton Size |
46cm * 37cm * 32cm / 18.11inch * 14.57inch * 12.6inch
|
| Loading Container |
20GP: 489 cartons * 40 pcs = 19560 pcs
40HQ: 1136 cartons * 40 pcs = 45440 pcs
|
|
