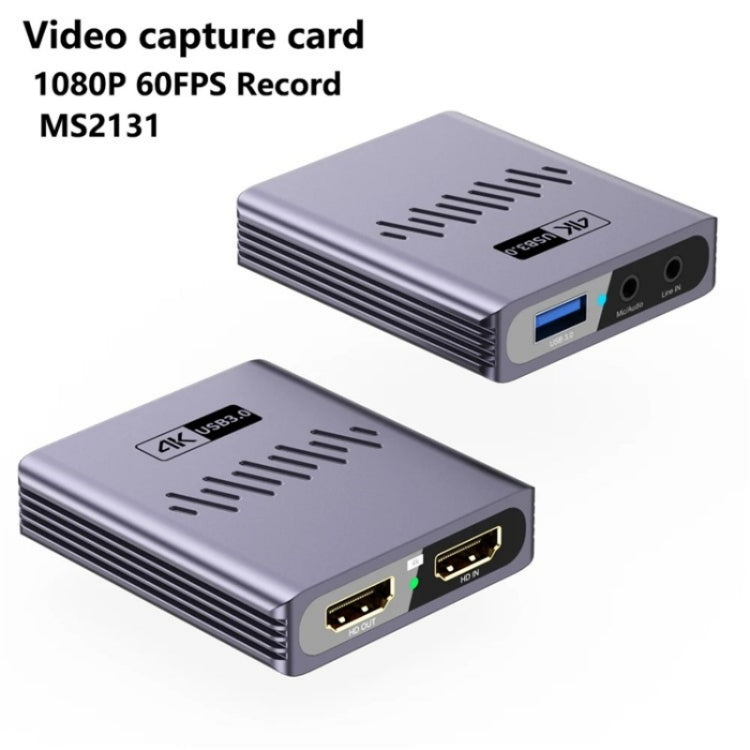

Capture and stream video from compatible HDMI devices with this MS2131-based USB video capture card. Featuring a lightweight aluminium alloy housing, 3.5mm audio connections and support for popular recording software, it is suitable for gaming streams, online teaching, video conferences, presentations and video recording.
The capture card accepts HDMI input up to 4K at 30Hz and supports different capture resolutions and frame rates depending on the selected format, software and host device.
Key Features
-
4K HDMI Input: Accepts HDMI video input up to 3840 × 2160 at 30Hz, according to the supplier.
-
Full HD Capture at 60FPS: Supports capture up to 1920 × 1080 at 60FPS in the stated MJPG and YUY2 formats.
-
Multiple Capture Formats: Supports MJPG and YUY2, with available resolutions and frame rates depending on the configuration.
-

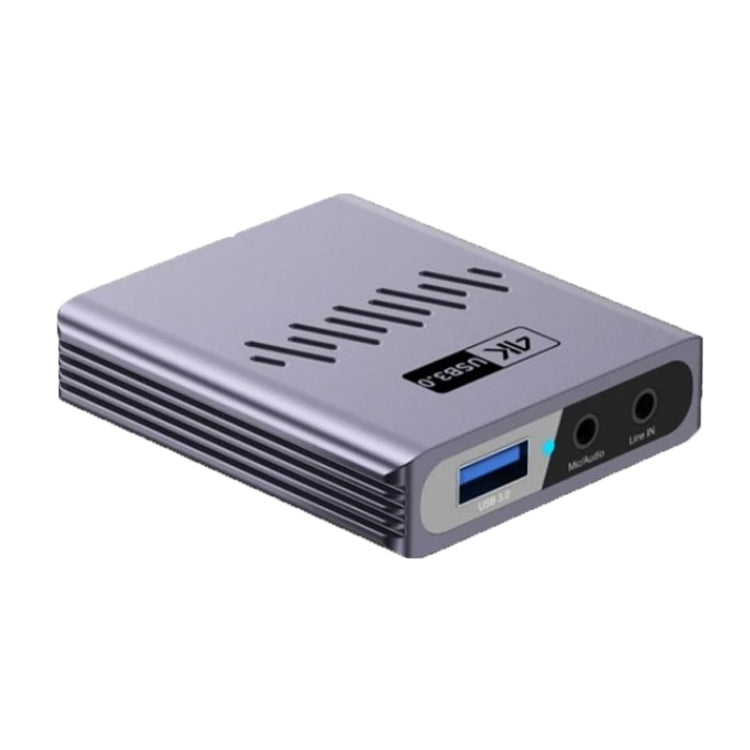

Aluminium Alloy Housing: Lightweight metal enclosure designed for durability and heat dissipation.
-

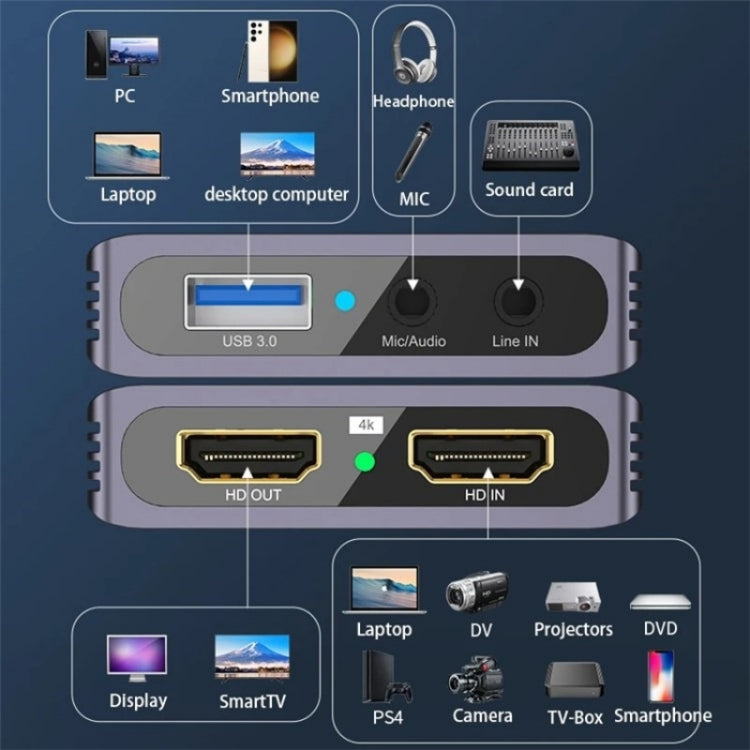

3.5mm Audio Connections: Includes a 3.5mm microphone input and audio output for supported audio setups.
-
Broad Device Compatibility: Designed for compatible laptops, cameras, projectors, set-top boxes, DVD players and game consoles, including Nintendo Switch, PlayStation and Xbox.
-
Recording and Streaming Software: Compatible with supported applications such as OBS Studio, VLC, PotPlayer, QuickTime and other capture tools.
-
Multiple Operating Systems: Listed support for Windows 7 or later, macOS, Linux and Android, subject to device and software compatibility.
-
HDCP 1.4 Listed: The supplier specifies HDCP 1.4 support. Protected HDMI content may not be available for capture.
Technical Specifications
| Specification |
Details |
| Product type |
HDMI to USB video capture card |
| Chipset |
MS2131 |
| HDMI input |
Up to 4K at 30Hz |
| Capture resolution |
Up to 1920 × 1080 at 60FPS in stated formats |
| Additional listed capture modes |
2560 × 1600 at 30FPS; 3840 × 2160 at 18FPS |
| Capture formats |
MJPG, YUY2 |
| Microphone connection |
3.5mm |
| Audio output |
3.5mm |
| Housing |
Aluminium alloy, as specified by the supplier |
| Operating temperature |
0°C to 70°C |
| Operating systems |
Windows 7 or later, macOS, Linux, Android (compatibility varies) |
| Capture software |
OBS Studio, VLC, PotPlayer and other compatible software |
| HDCP |
HDCP 1.4 listed by supplier |
Typical Applications
-
Gaming capture and livestreaming
-
Recording compatible cameras and HDMI video sources
-
Online meetings, teaching and presentations
-
Video production and content creation
-
Streaming through supported platforms such as YouTube Live, Twitch, Facebook Live and Zoom, using compatible software
Compatibility and Setup Notes
-
Check HDMI output: The source device must provide a compatible video output.
-
Use the supplied cable: The supplier warns that using a different cable may limit performance to 720p or prevent operation.
-
Choose the correct capture format: Actual resolution and frame rate depend on MJPG/YUY2 settings, capture software and host-device capabilities.
-
Check computer performance: Higher-resolution capture and streaming may require a capable processor, graphics hardware and sufficient memory.
-
Mobile device limitations: Android phones may be limited to 1080p capture depending on their USB interface and software.
-
Protected content: Some HDMI sources use HDCP encryption, which can prevent recording. Only capture content you are authorised to record.
Important: The advertised 4K input capability does not mean that all content can be recorded at 4K 30FPS. The supplier's listed capture modes specify up to 1080p at 60FPS, with certain higher-resolution modes operating at lower frame rates.
Specification:
| Package Weight |
| One Package Weight |
0.18kgs / 0.39lb |
| One Package Size |
12.2cm * 12.1cm * 2.8cm / 4.8inch * 4.76inch * 1.1inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
67cm * 67cm * 15cm / 26.38inch * 26.38inch * 5.91inch |
| Loading Container |
20GP: 396 cartons * 170 pcs = 67320 pcs
40HQ: 919 cartons * 170 pcs = 156230 pcs
|
|
